$559
Includes Free Shipping*
Product Code: SEN-EM-XSW 2-B
$559
Sennheiser XSW 2 Wireless Receiver (Frequency Band B)
Online Stock:Available to Order In
Free Shipping
Support: 1 Year
Warranty: 2/yr
35 Years. One Massive Thank You.
Mannys Means Music - and it has for 35 years. To celebrate, we're giving one lucky customer a $3,500 store voucher
Between October 1st and December 31st 2026, spend $350 or more in-store or online and enter to win a $3,500 Mannys store voucher, on us! Enter with your order number via the entry form. T&Cs apply. ACT excluded. Purchase must be made between October 1st and December 31st 2026, 11:59pm AEDT. Entries close January 11 2027, 11:59pm AEDT.
Product Information

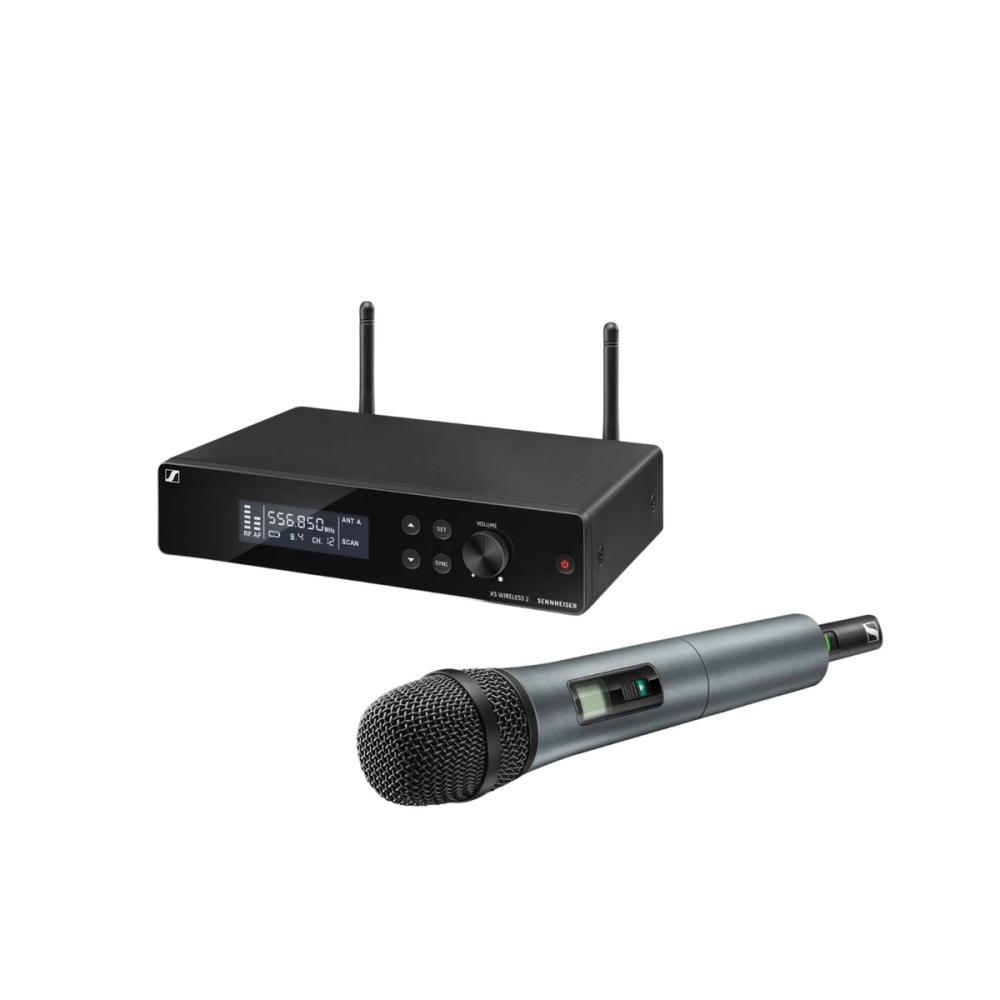

The Sennheiser XSW 2 Wireless Receiver operates across the 606, 630 MHz frequency band (Band B), delivering reliable UHF transmission for live performance and presentation applications. This double superheterodyne receiver pairs with the included SKM 835-XSW handheld transmitter to provide up to 10 hours of wireless operation on two AA batteries. The system achieves a signal-to-noise ratio of ≥103 dB(A) with total harmonic distortion kept below 0.9%, ensuring clean audio reproduction across the 50, 16,000 Hz response range.
Sensitivity measures less than 3 μV at 52 dB(A)rms S/N, while the cardioid dynamic capsule captures 1.5 mV/Pa input sensitivity. Output options include both balanced XLR at +12 dBu and unbalanced 6.3 mm jack at +6 dBu for flexible connection to mixers and PA systems. The receiver's switchable squelch ranges from 3 dBμV to 28 dBμV via pilot tone, preventing interference during operation. Transmitter gain adjusts from 0 to -30 dB in 10 dB increments, allowing precise level matching to different vocal dynamics and stage volumes.
The rackmount receiver measures approximately 200 × 42 × 127 mm and weighs 680 g, with the included GA 1-XSW 2 mounting kit enabling installation in standard 19-inch racks. The NT 12-5CW power supply ships with country adapters, while the MZQ 1 microphone clip and two AA batteries complete the included package for immediate deployment in rehearsal rooms, houses of worship, and mobile sound reinforcement applications.
Features
- 606, 630 MHz frequency band (B) with double superheterodyne receiver design
- Signal-to-noise ratio of ≥103 dB(A) with THD ≤0.9%
- Audio frequency response spans 50, 16,000 Hz (, 3 dB points)
- Balanced XLR output at +12 dBu and unbalanced jack at +6 dBu
- Transmitter gain adjustable from 0 to -30 dB in 10 dB steps
- Switchable squelch control from 3 dBμV to 28 dBμV via pilot tone
- Approximately 10 hours battery life from two AA batteries (included)
- Includes SKM 835-XSW handheld with cardioid dynamic capsule and rackmount kit
