$599
Includes Free Shipping*
Product Code: LEH-MV90
$599

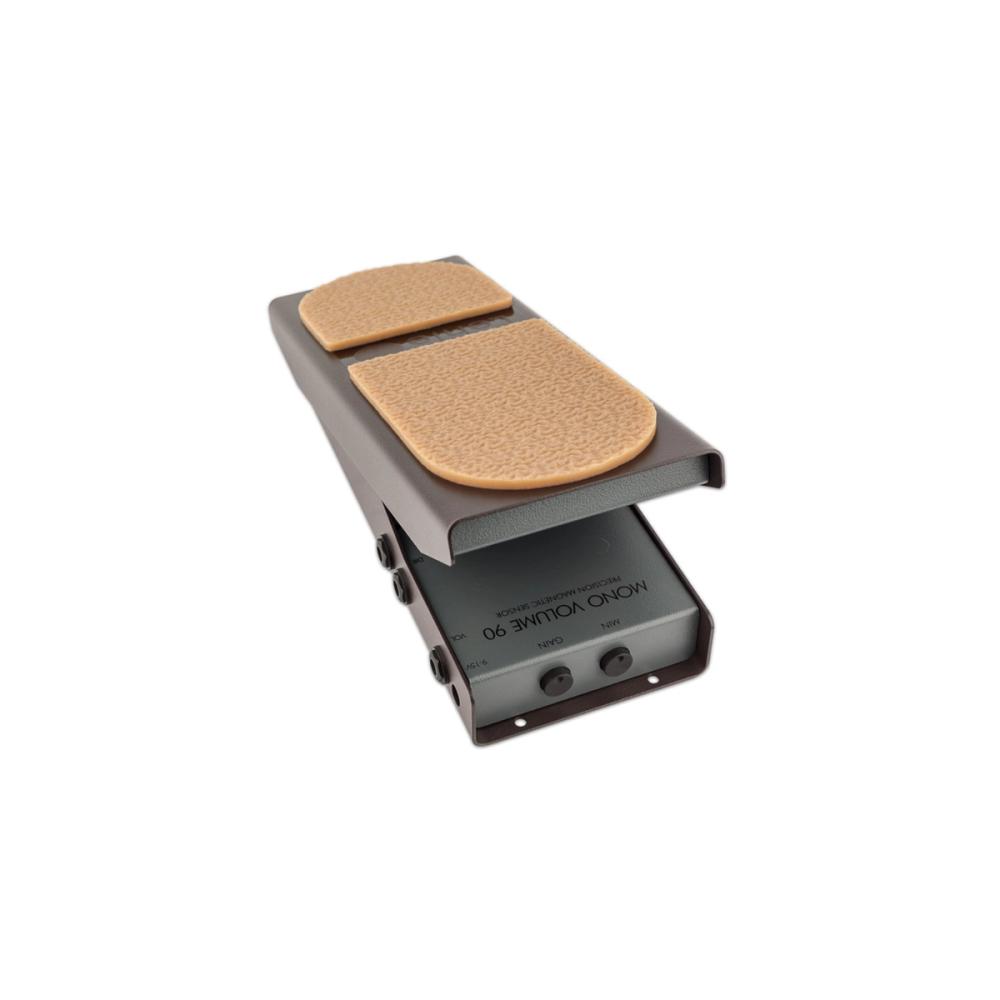

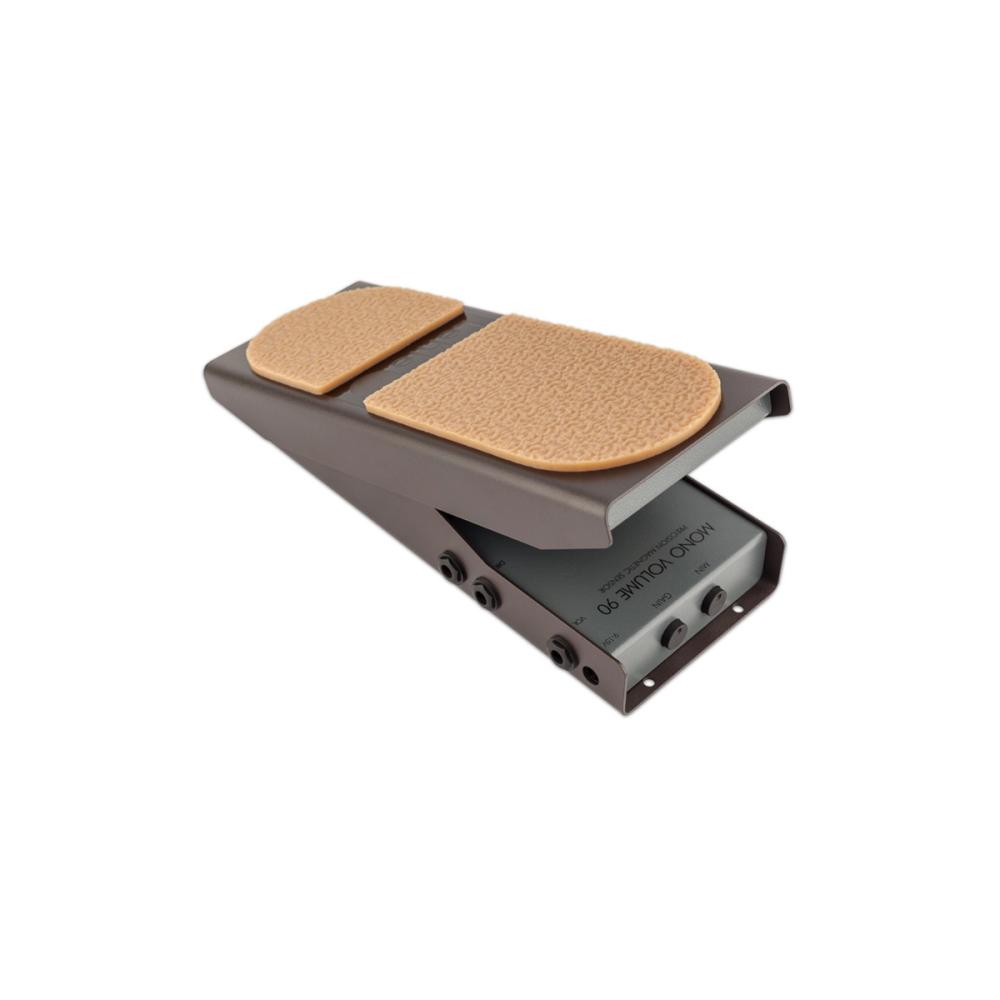

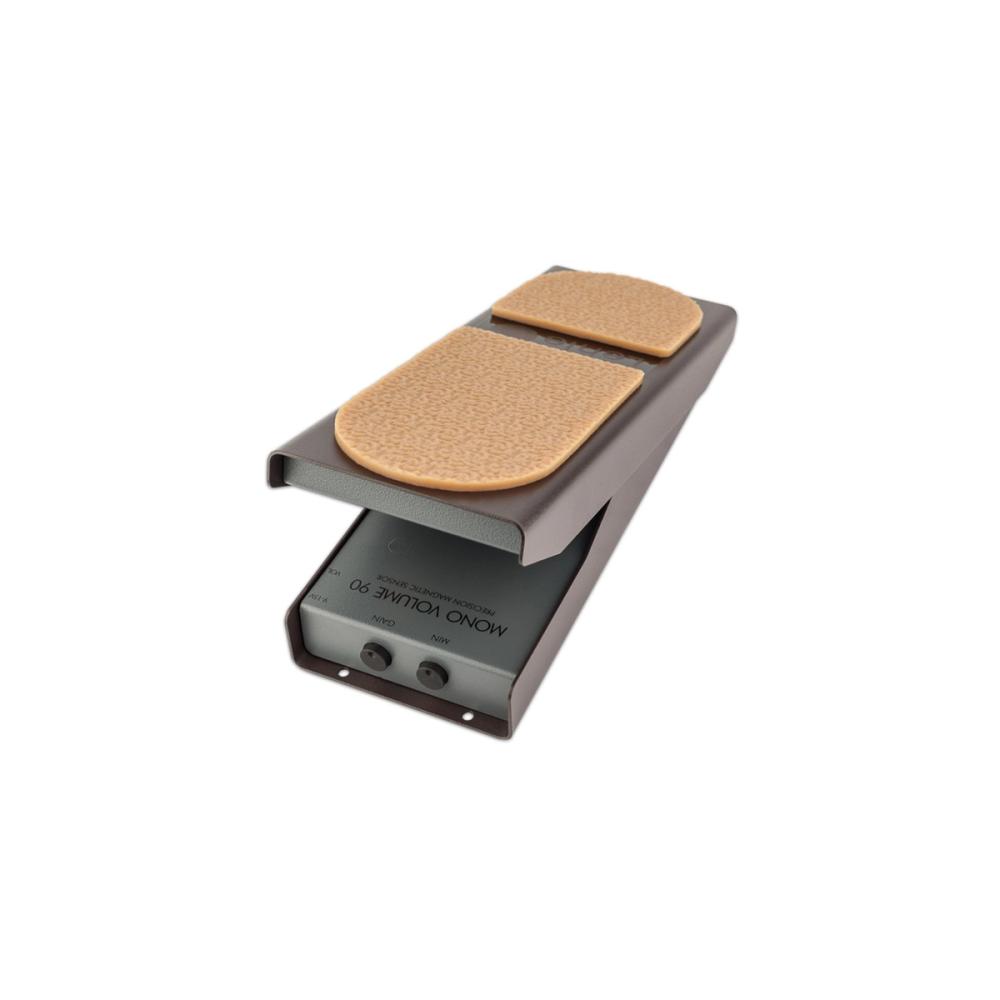

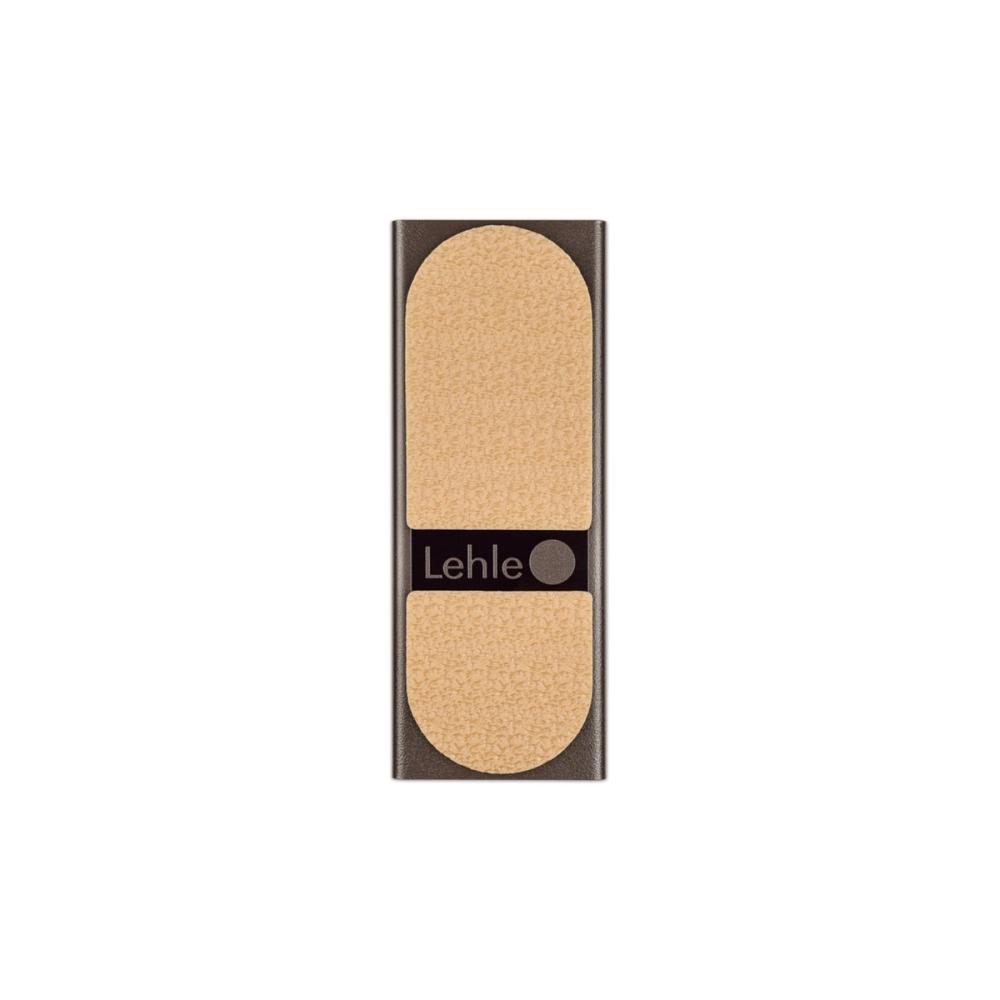

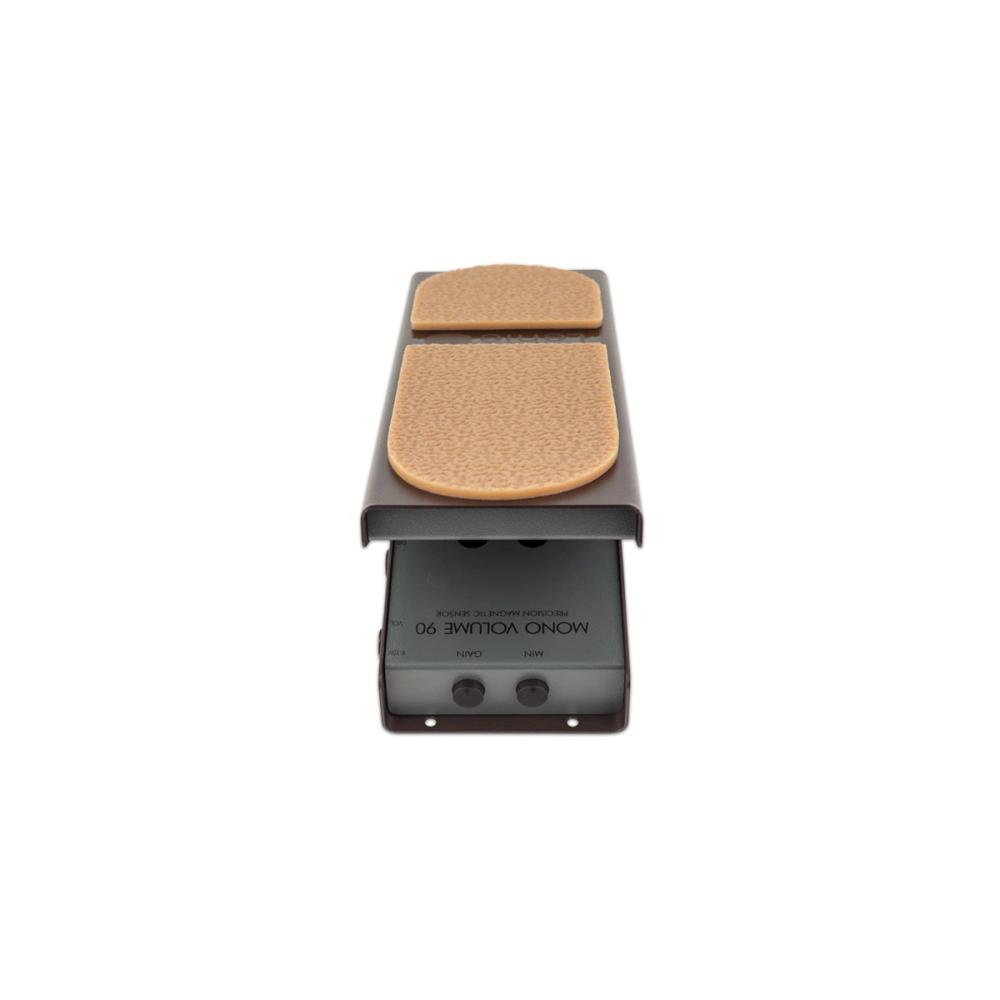

Lehle Mono Volume 90 Volume Pedal 90 Wear-free Dual-out
Online Stock:Available to Order In
Free Shipping
Support: 1 Year
Warranty: 1/yr
35 Years. One Massive Thank You.
Mannys Means Music - and it has for 35 years. To celebrate, we're giving one lucky customer a $3,500 store voucher
Between October 1st and December 31st 2026, spend $350 or more in-store or online and enter to win a $3,500 Mannys store voucher, on us! Enter with your order number via the entry form. T&Cs apply. ACT excluded. Purchase must be made between October 1st and December 31st 2026, 11:59pm AEDT. Entries close January 11 2027, 11:59pm AEDT.
Product Information
The Lehle Mono Volume 90 replaces the mechanical potentiometer found in conventional volume pedals with a German-made Hall effect magnetic sensor and a premium Blackmer® VCA from the United States. The pedal moves only a magnet; distance is measured contactlessly by the Hall sensor, which then controls the voltage-controlled amplifier. This wear-free design eliminates potentiometer noise, maintains consistent input and output impedance across the entire sweep, and preserves the full frequency spectrum without the high-end damping common to traditional designs.
The internal power supply doubles the incoming voltage to 18V, delivering a total dynamic range of 110dB. Volume control spans from –92dB to 0dB, with a MIN control allowing adjustment of the minimum level from mute to 90% (–10dB), plus a GAIN control offering up to +12dB of boost. The pedal runs on low-friction high-performance polymer bearings with no mechanical transmission to other components, and tension is adjustable via a precision screw. A buffered direct output supplies tuners, DAWs, or secondary amplifiers without affecting the main signal path.
Side-mounted input and output jacks allow the pedal to sit flush on pedal steel racks without obstruction. The Hall sensor is factory-calibrated to the internal magnet and the pedal's control range, ensuring precise response throughout the throw. The contactless magnetic design means no degradation over time, and the VCA-based architecture maintains signal integrity that conventional optical sensors and resistive pots simply cannot match at extreme settings.
Features
- Hall effect magnetic sensor and Blackmer® VCA for wear-free operation
- 110dB total dynamic range via internal 18V power supply doubling
- Volume control range from –92dB to 0dB with consistent impedance
- MIN control adjusts minimum volume from mute to 90% (–10dB)
- GAIN control provides up to +12dB of boost above unity
- Buffered direct output for tuners, DAWs, or secondary amplifiers
- Low-friction polymer bearings with adjustable pedal tension via precision screw
- Side-mounted jacks allow unobstructed placement on pedal steel racks
