Palmer Orbit 11 Active 1000W CO-AX 3-Way Studio Monitor (SINGLE)

The Palmer Orbit 11 is an active 3-way studio monitor engineered in Germany for mixing, mastering, and content creation across professional and semi-professional environments. Its coaxial True Point Source design–combining a 6.5" midrange driver and 1" tweeter on a single acoustic axis–delivers consistent 120° × 120° dispersion and time-coherent driver integration. The 1000 W Class-D amplifier and extended frequency response (28 Hz–28 kHz @ –3 dB) make it suitable for critical listening tasks where translation and accuracy matter.

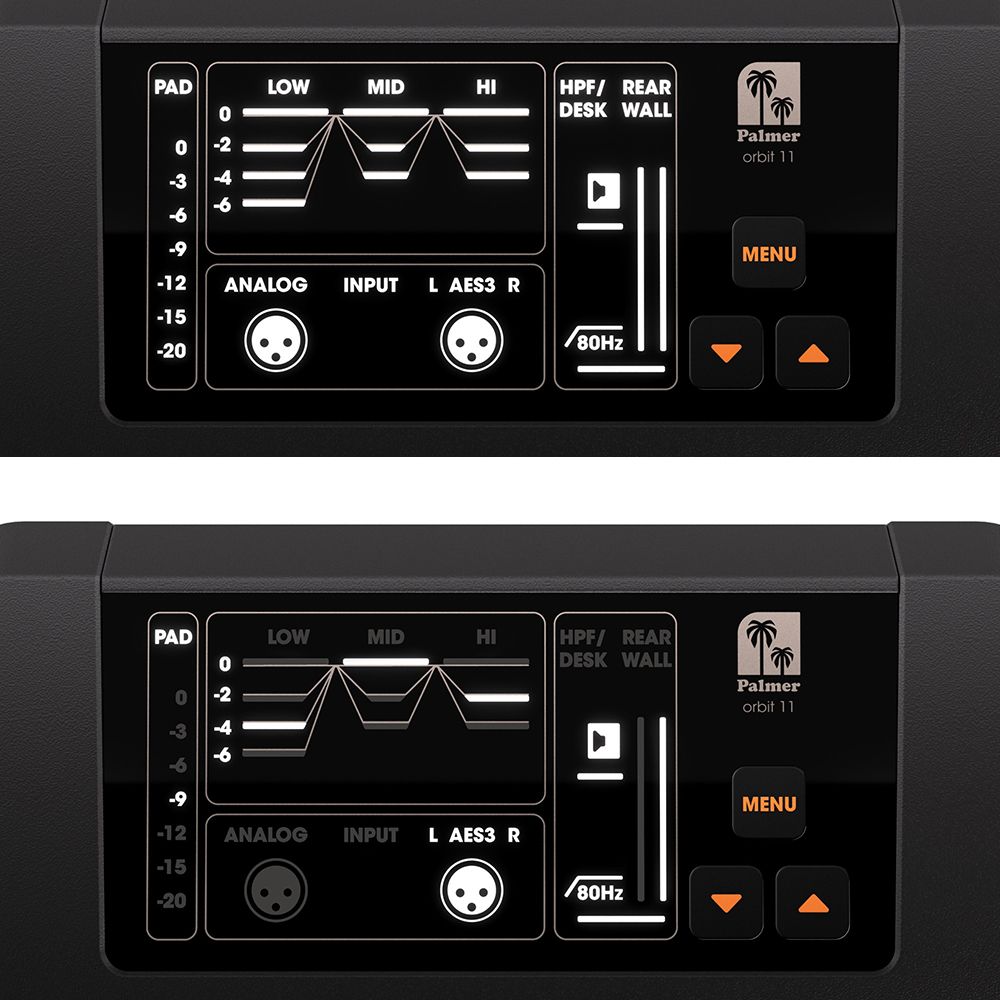

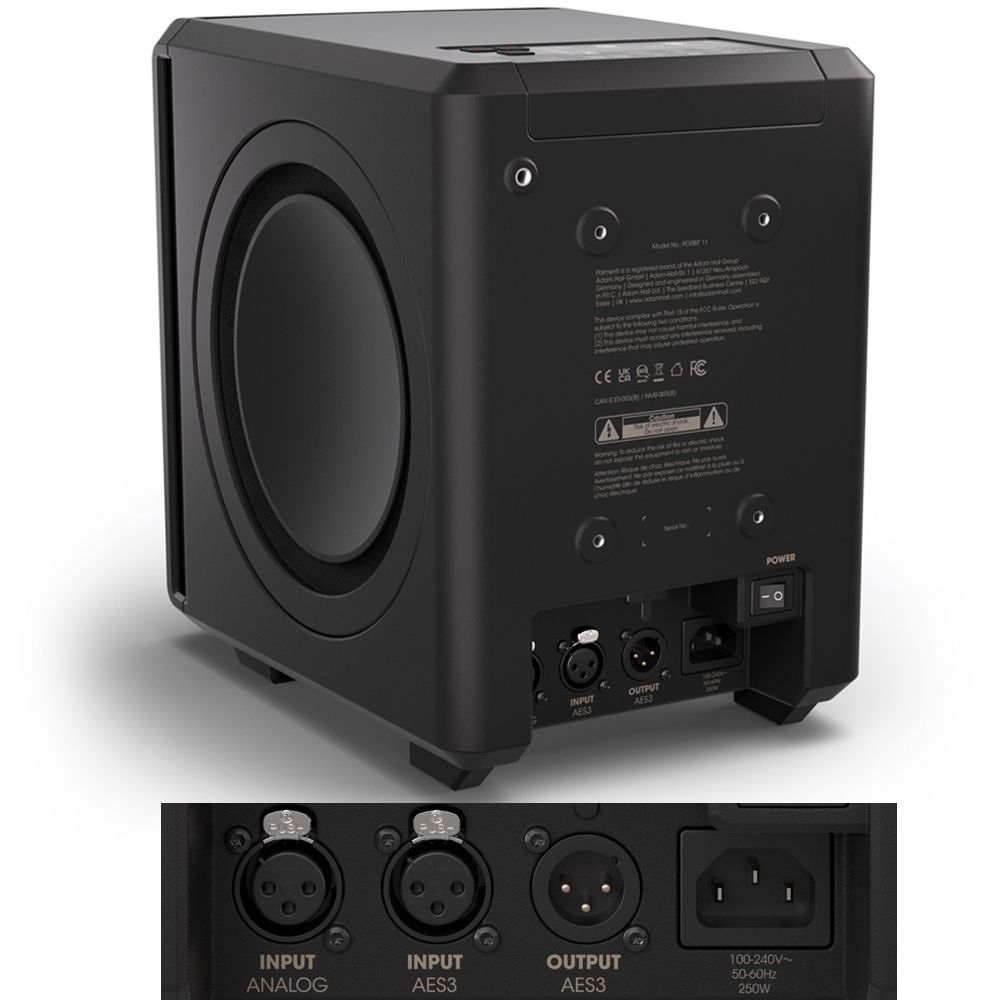

Construction centres on a die-cast aluminium enclosure with 5–16 mm wall thickness designed to minimise cabinet resonance and vibration. Dual impulse-compensated 8" woofers handle low frequencies in a sealed chamber, whilst the cardioid front baffle reduces rearward energy to limit room interaction. Signal processing runs at 96 kHz/24-bit with FIR filtering and linear-phase behaviour; connectivity includes balanced XLR line input, AES3 via XLR, and AES3 Thru output for daisy-chaining. The top-mounted control panel grants direct access to input pad, 3-band EQ, Desk and Rear Wall presets, and an 80 Hz high-pass filter, supporting rapid setup and room compensation.

These monitors suit producers working in treated rooms where consistent imaging and bass response are non-negotiable–from EDM and hip-hop beat-makers to classical engineers and broadcast facilities. The cardioid design and preset calibration reduce the need for extensive acoustic treatment, making the Orbit 11 practical for home studios or shared spaces where wall coupling and room modes are concerns. Wall and ceiling mounting options (M8 eye-bolt, compatible with Gravity Tilt-and-Swivel Mount GSPWMBS20B) expand placement flexibility for fixed installations or temporary touring setups.

Features

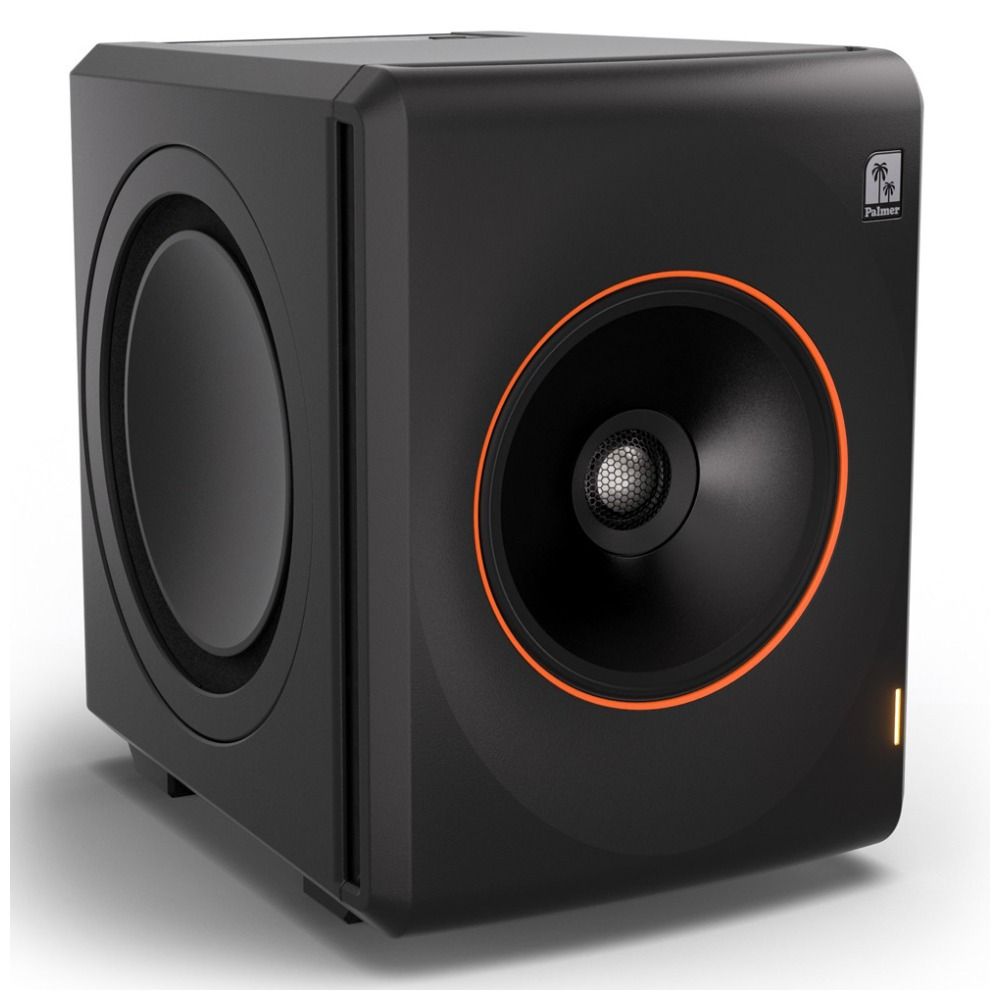

• Coaxial True Point Source: 6.5" midrange and 1" tweeter on single acoustic axis

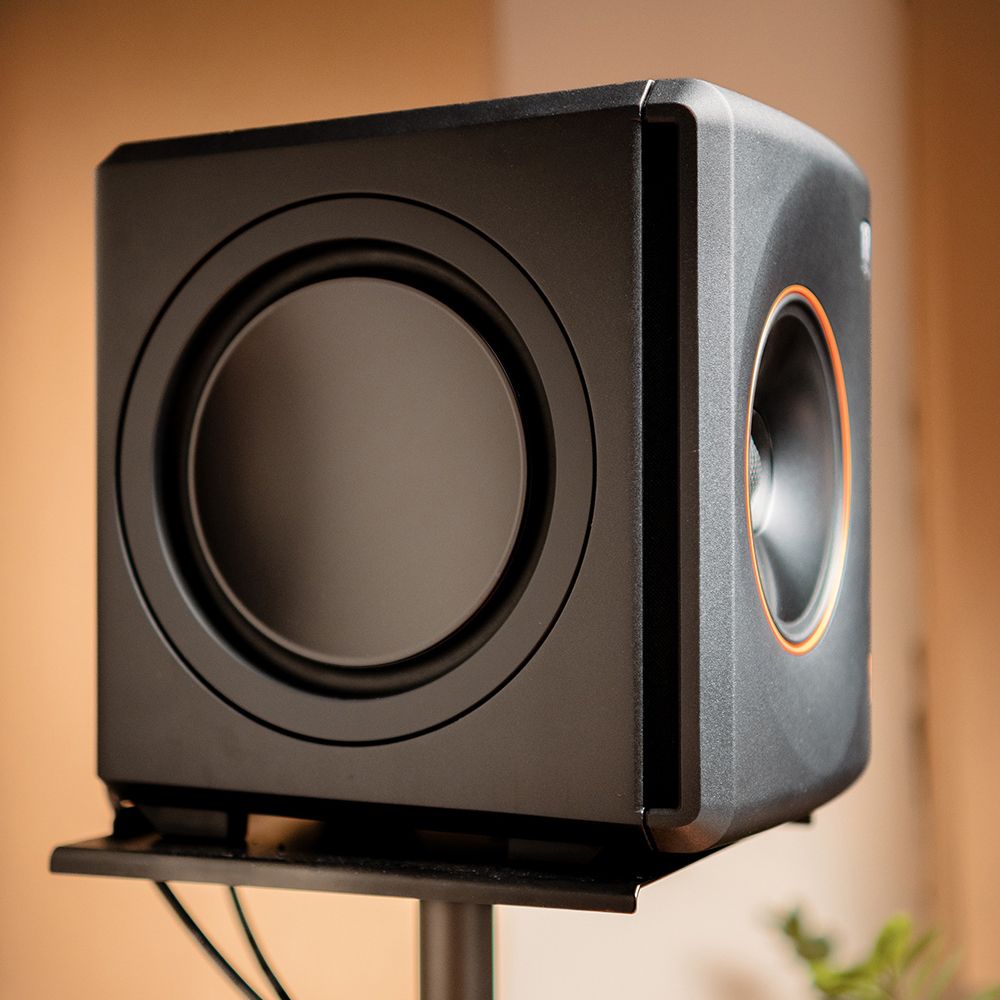

• Dual 8" impulse-compensated woofers, sealed die-cast aluminium enclosure
• 1000 W Class-D amplifier, 400 W RMS, 116 dB peak SPL output
• Frequency response 28 Hz–28 kHz @ –3 dB with extended low-end design
• 96 kHz/24-bit DSP and DAC with FIR filtering for linear-phase behaviour
• Cardioid design, 120° constant directivity, reduced room interaction
• Balanced XLR, AES3 input and thru output for digital integration
• Top-panel controls: input pad, 3-band EQ, Desk and Rear Wall presets, 80 Hz high-pass filter
