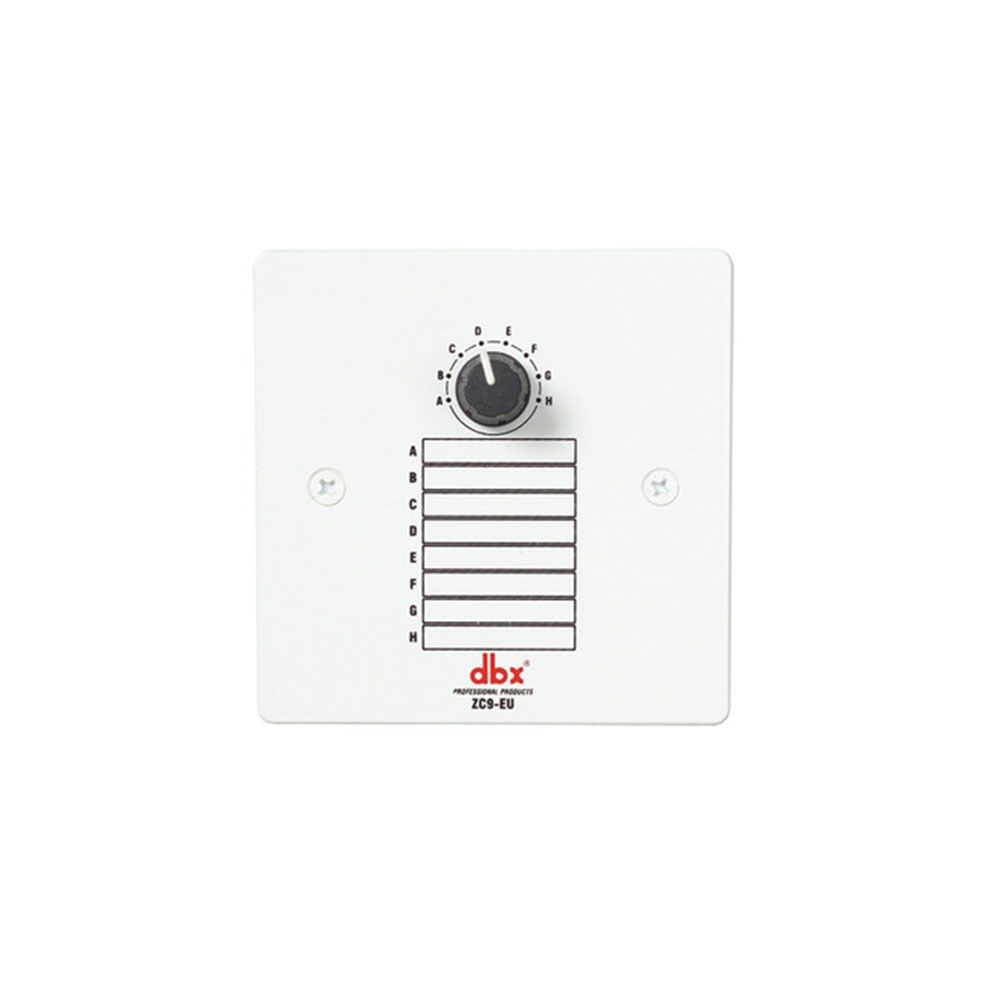

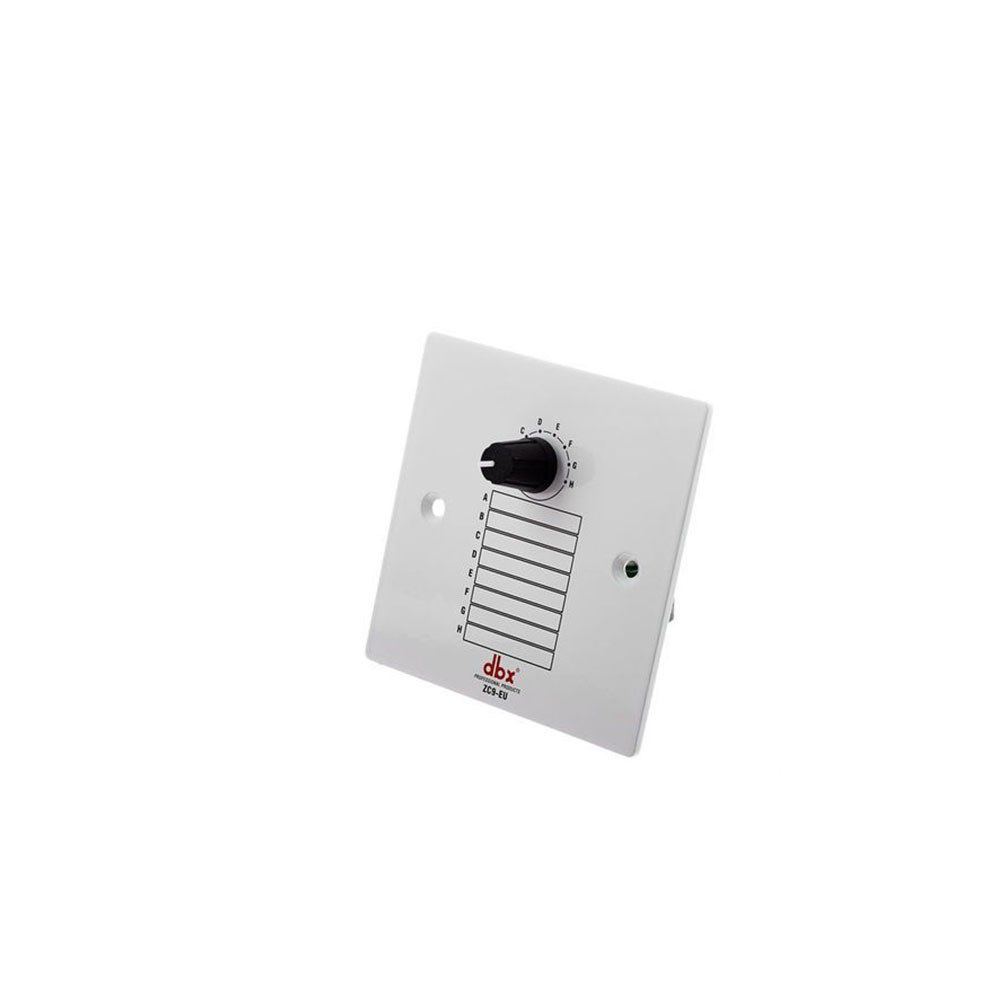

DBX ZC9 Wall Mount 8-Position Zone Controller
Online Stock:In Stock
Support: 1 Year
Warranty: 2/yr
35 Years. One Massive Thank You.
Mannys Means Music - and it has for 35 years. To celebrate, we're giving one lucky customer a $3,500 store voucher
Between October 1st and December 31st 2026, spend $350 or more in-store or online and enter to win a $3,500 Mannys store voucher, on us! Enter with your order number via the entry form. T&Cs apply. ACT excluded. Purchase must be made between October 1st and December 31st 2026, 11:59pm AEDT. Entries close January 11 2027, 11:59pm AEDT.
Product Information
The Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.
The remote device provides rotary switch source selection for the ZonePro 1260 and 1261. The remote has DIP switch identification and connection to the device being controlled shall be via CAT 5 cable and RJ-45 connectors.
Features
- Wall-Mounted Zone Controller

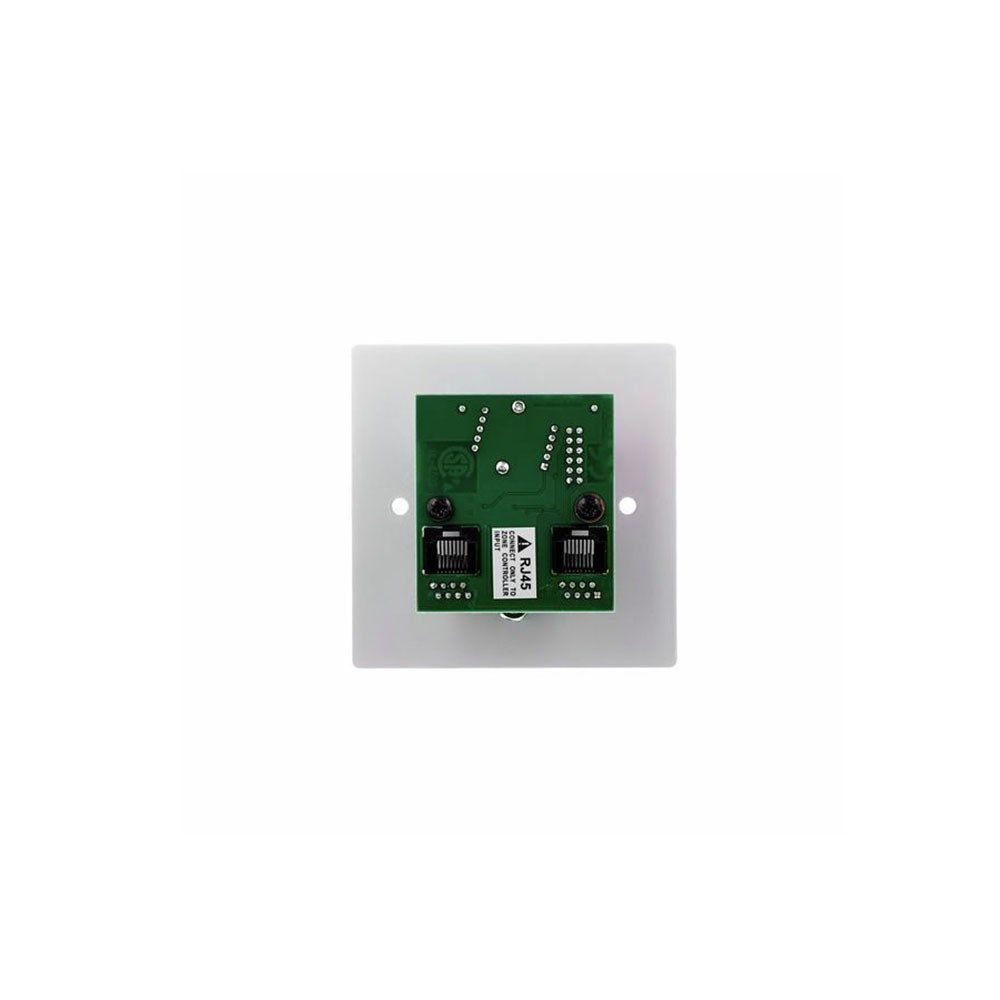

- Connectors:(2) RJ-45
- Series Wiring: Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
- Parallel Wiring using ZC-BOB: Up to Six Zone Controllers: 1000 ft.
- Parallel Wiring Cable: CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
