Chauvet DJ Sentinel Spot Q60ILS RGBW Moving Spot

The Chauvet DJ Sentinel Spot Q60 ILS is a compact moving head designed for venues and travelling rigs that demand reliable, wireless control without a sprawl of DMX cables. Built by Chauvet, a stalwart in live lighting, this 60W RGBW LED fixture delivers focused beam work with a tight 12° beam angle and output of 8,687 lux at 2 metres. Its defining feature is the integrated DFI transceiver, enabling either wireless DMX or ILS synchronised operation–a genuine convenience for quick setups and networked lighting schemes.

Specification highlights include 540° pan and 229° tilt rotation, six interchangeable glass gobos with slot–n–lock mounting, and variable–speed continuous scroll for dynamic pattern changes. The fixture runs 9 or 15 DMX channels via 3–pin XLR connectors and supports power linking of up to seven units at 120V or eleven at 230V, streamlining cable runs. Control surfaces via the full–colour LCD display allow straightforward parameter adjustment on site, whilst Totem Mode locks focus to the dance floor. Strobe rates run 0 to 20 Hz; the LED offers 50,000 hours of operational life.

Weighing 4.1 kg and measuring 204 × 150 × 332 mm, the unit remains portable without sacrificing thermal stability or optical performance. Input voltage auto–ranges across 100–240 VAC at 50/60 Hz, drawing just 76W and 1A at 120V or 0.7A at 230V–practical for venues with tight power budgets. Optional external controllers (IRC–6, ILS Command) expand operational flexibility for larger touring installations.

Features

• 60W quad–colour RGBW LED with 50,000 hour life expectancy
• 540° pan / 229° tilt rotation with multiple range options
• Six glass gobos, rotating, indexable, continuous scroll variable speed
• Integrated DFI transceiver for wireless DMX and ILS sync

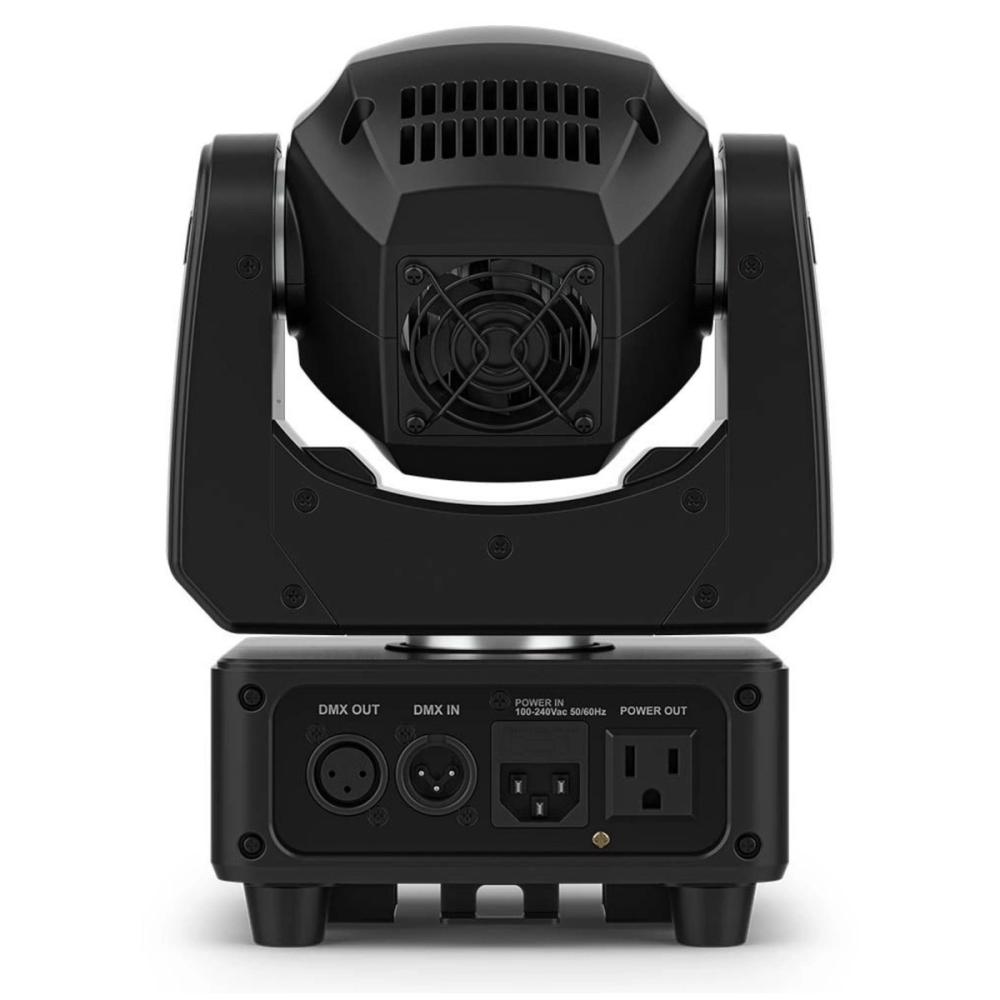

• 9 or 15 DMX channels via 3–pin XLR connectors
• Power linking: 7 units @ 120V, 11 units @ 230V
• 8,687 lux @ 2m; 12° beam angle; 0–20 Hz strobe
• Compact 4.1 kg / 204 × 150 × 332 mm; auto–ranging 100–240 VAC
