Australian Monitor AJQF60CS Dual cone ceiling speaker 6 inch woofer 100V Taps 10

The Australian Monitor AJQF60CS is a two–way coaxial ceiling speaker designed for commercial audio installations requiring extended low–frequency output and high sound pressure levels. Built around a 6–inch woofer with a coaxial tweeter arrangement, this QuickFit premium model features a sealed back–can that isolates the driver from ceiling cavities and minimises acoustic bleed. Front baffle porting extends bass response while maintaining clarity across the frequency range, and the frameless magnetic grille allows tool–free access to 100V line taps.

The dual–cone coaxial driver configuration delivers detailed audio reproduction with consistent dispersion characteristics, while the ported enclosure design improves low–frequency definition without cabinet resonance. The magnetic grille system snaps on and off without tools, exposing the tap selector for output adjustment across multiple power settings on the 100V distribution line. A sealed rear enclosure prevents sound leakage into adjoining ceiling spaces, maintaining acoustic isolation in multi–zone installations. The white grille can be swapped for an optional black version purchased separately, and EASE® GLL simulation files are available for acoustic modelling and system design.

Features

• 6–inch coaxial driver with integrated tweeter for two–way operation
• 100V line transformer with multiple tap settings for power adjustment
• Front–ported baffle design extends bass response and low–frequency clarity

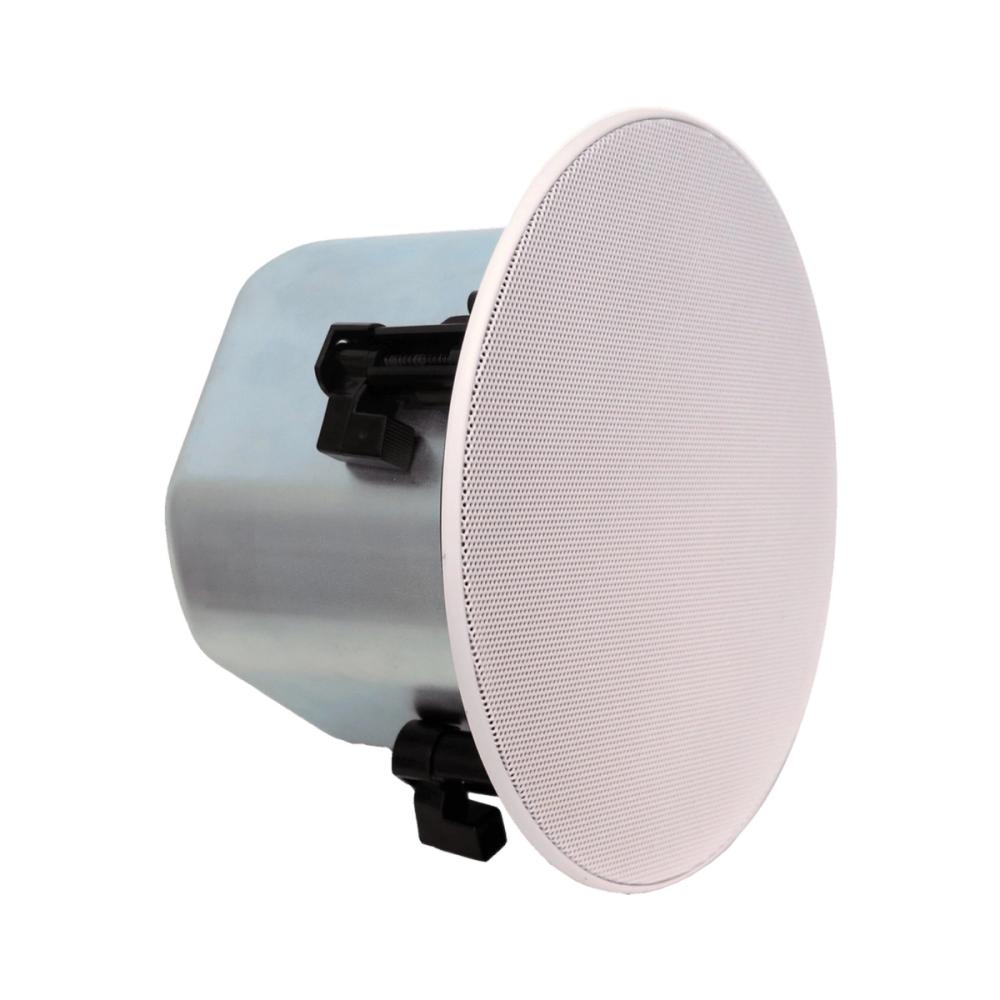

• Sealed back–can construction isolates driver from ceiling cavity spaces

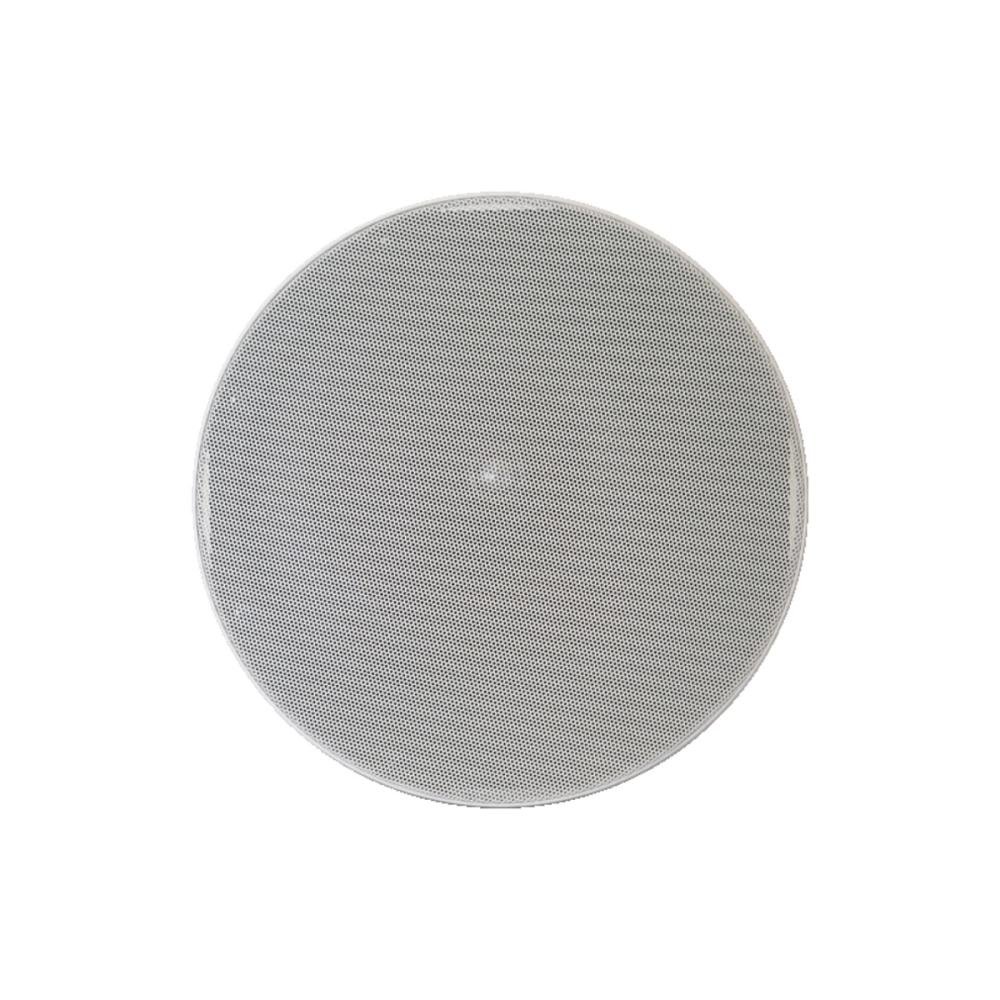

• Frameless magnetic grille allows tool–free removal for tap changes
• High SPL output capability for coverage in larger commercial spaces
• Optional black grille available as separate accessory for custom installations
• EASE® GLL modelling files provided for system design and simulation
