$799
Includes Free Shipping*
Product Code: ANT-LCU2S
$799

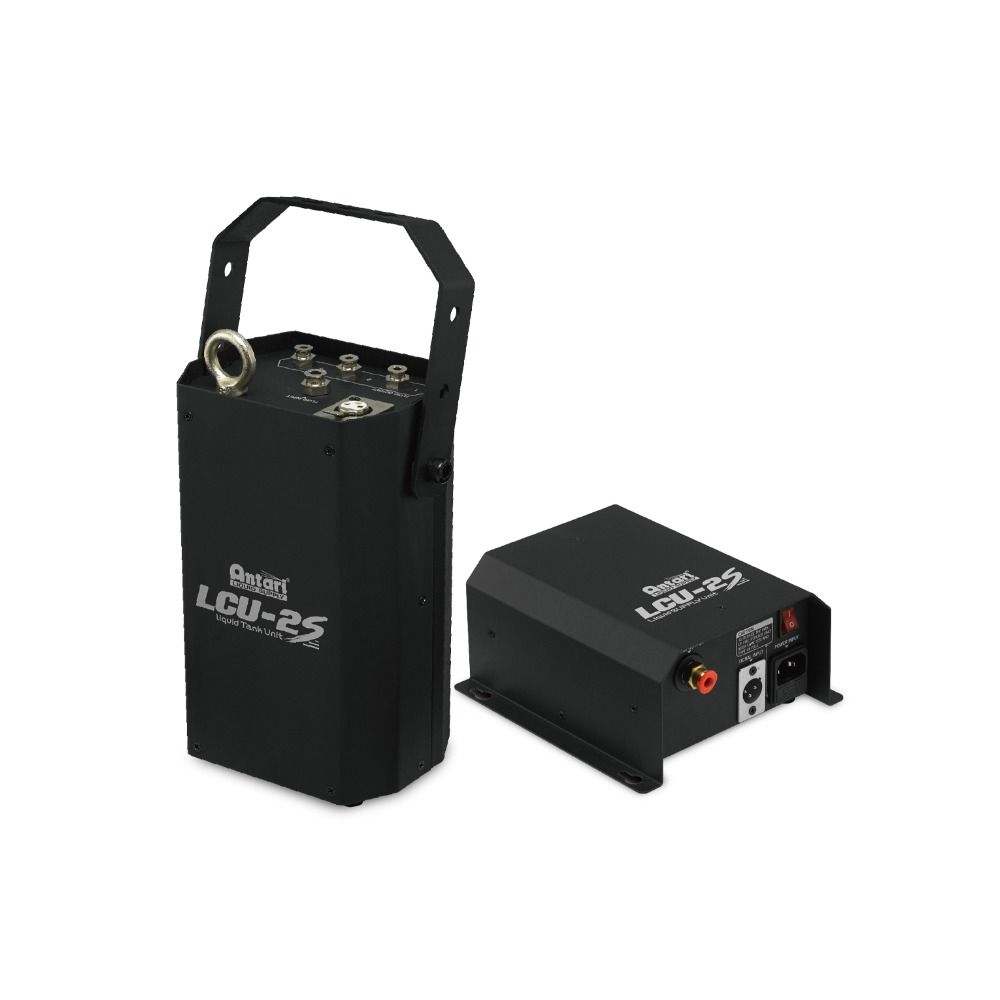

Antari LCU-2S Liquid Supply System for Antari Fog Machines
Online Stock:Available to Order In
Free Shipping
Support: 1 Year
Warranty: 1/yr
35 Years. One Massive Thank You.
Mannys Means Music - and it has for 35 years. To celebrate, we're giving one lucky customer a $3,500 store voucher
Between October 1st and December 31st 2026, spend $350 or more in-store or online and enter to win a $3,500 Mannys store voucher, on us! Enter with your order number via the entry form. T&Cs apply. ACT excluded. Purchase must be made between October 1st and December 31st 2026, 11:59pm AEDT. Entries close January 11 2027, 11:59pm AEDT.
Product Information
The Antari LCU-2S Liquid Supply System is a centralised fluid-distribution unit designed to service multiple Antari fog, fazer, and snow machines simultaneously from a single tank. Manufactured by Antari, a specialist in effects equipment, it solves a genuine operational problem: eliminating the need to refill individual machine reservoirs during extended events. Its key differentiator is the ability to maintain constant liquid pressure across up to three compatible machines at once, provided the same fluid type is used throughout.
The system comprises two units—a 1.8 kg tank module (L 158 W 103 H 248 mm) and a 1.95 kg supply unit (L 179 W 167 H 84 mm)—connected via XLR 3-pin data cable and IEC power. The supply unit draws 55 W at AC 220–240 V, 50/60 Hz and operates fully automatically once powered. Distribution distances are generous: up to 12 metres vertically and 35 metres horizontally between tank and supply unit, allowing flexible rig layouts. The system works exclusively with Antari-branded fluid and operates reliably across ambient temperatures from 5 to 40 °C.
The LCU-2S's distributed architecture proves practical for touring productions and fixed installations where multiple effect units share a liquid supply chain. Its auto-control logic removes manual intervention once the tank is filled—pressure remains consistent, and the system handles the distribution workload. Compact footprint and modest power consumption make integration into existing touring rigs straightforward, while the 35–metre horizontal reach accommodates sprawling stage and venue layouts without additional pump infrastructure.
Features
- Supplies up to three compatible Antari fog, fazer, or snow machines from single tank.
- Tank unit: 1.8 kg, 158×103×248 mm; supply unit: 1.95 kg, 179×167×84 mm.
- Rated power: 55 W; input voltage AC 220–240 V, 50/60 Hz, 0.23 A.
- XLR 3–pin data connection and IEC power connector for equipment integration.
- Fully automatic operation with no manual intervention once tank is filled.
- Maximum vertical distribution distance: 12 metres; horizontal: 35 metres.
- Compatible with Antari Fluid only; operates across 5–40 °C ambient temperature range.
- Eliminates individual machine refills during extended events and touring performances.
